Description
- Color-corrected infinity optic system
- Erect image 30 degree inclined Binocular observation tube.
- Trinocular port for Camera attachment
- High eye point 10x/22mm eyepiece, adjustable diopter
- Ergonomic Low front co-axial coarse and fine focus adjustment.
- Coarse adjustment distance: 33mm; fine precision: 0.001mm.
- Inward facing nosepiece for less handling obstruction
- 5 objectives changer
- Wide range of objectives : 5X, 10X, 20X, 50X, and 100X.
- Brightfield, oblique illumination, DIC and Polarization inspection techniques
- Neutral filter and R, G, B color filter
- High power 5W white LED reflected light
- Double layers mechanical working stage with metal insert
- XY travel : 105mm x 105mm

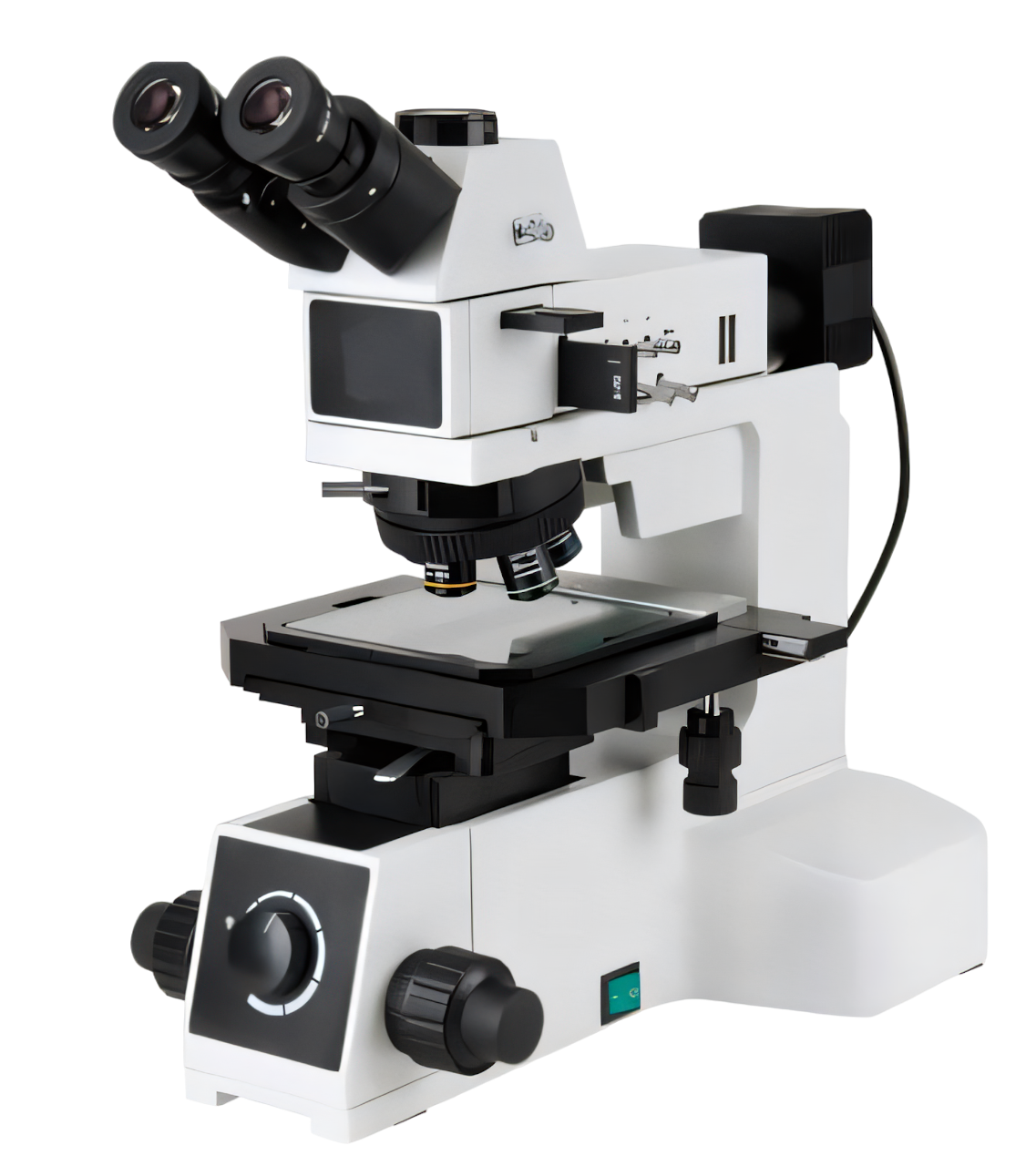

| MX4R Specification | |
|---|---|
| Optical System | Infinity color correct optical system |
| Viewing Head | 30° inclined trinocular head |
| Eyepiece | High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter, micrometer attachable High eye point wide field plan eyepiece PL15X/16mm |
| Objective | Infinity long working distance plan achromatic metallurgical objective (5X, 10X, 20X, 50X, 100X) |
| Nosepiece | Intilted, quintuple nosepiece, with DIC slot |
| Focusing Mechanism | Reflected frame with low position coaxial focusing mechanism, coarse range: 30mm, fine precision: 0.001mm, with upper limit and tension adjustment |
| Stage | 4 inches two-layer mechanical stage with low position coaxial adjustment; size: 230mm x 215mm, moving range: 105mm x 105mm; glass plate for reflected use |
| Illumination System | Reflected illuminator, coaxial illumination system, with iris aperture diaphragm and field diaphragm, center adjustable; wide voltage 100–240V with inclined illumination device, single high-power 5W LED, warm color (color temperature 2850K–3250K) |
| Camera Adapter | 0.35X / 0.5X / 0.65X / 1X C-mount adapter, focus adjustable; digital camera relay lens |
| Others | Polarizer, analyzer, 360° rotating analyzer; interference filter; high precision micrometer; DIC attachment |
