Description

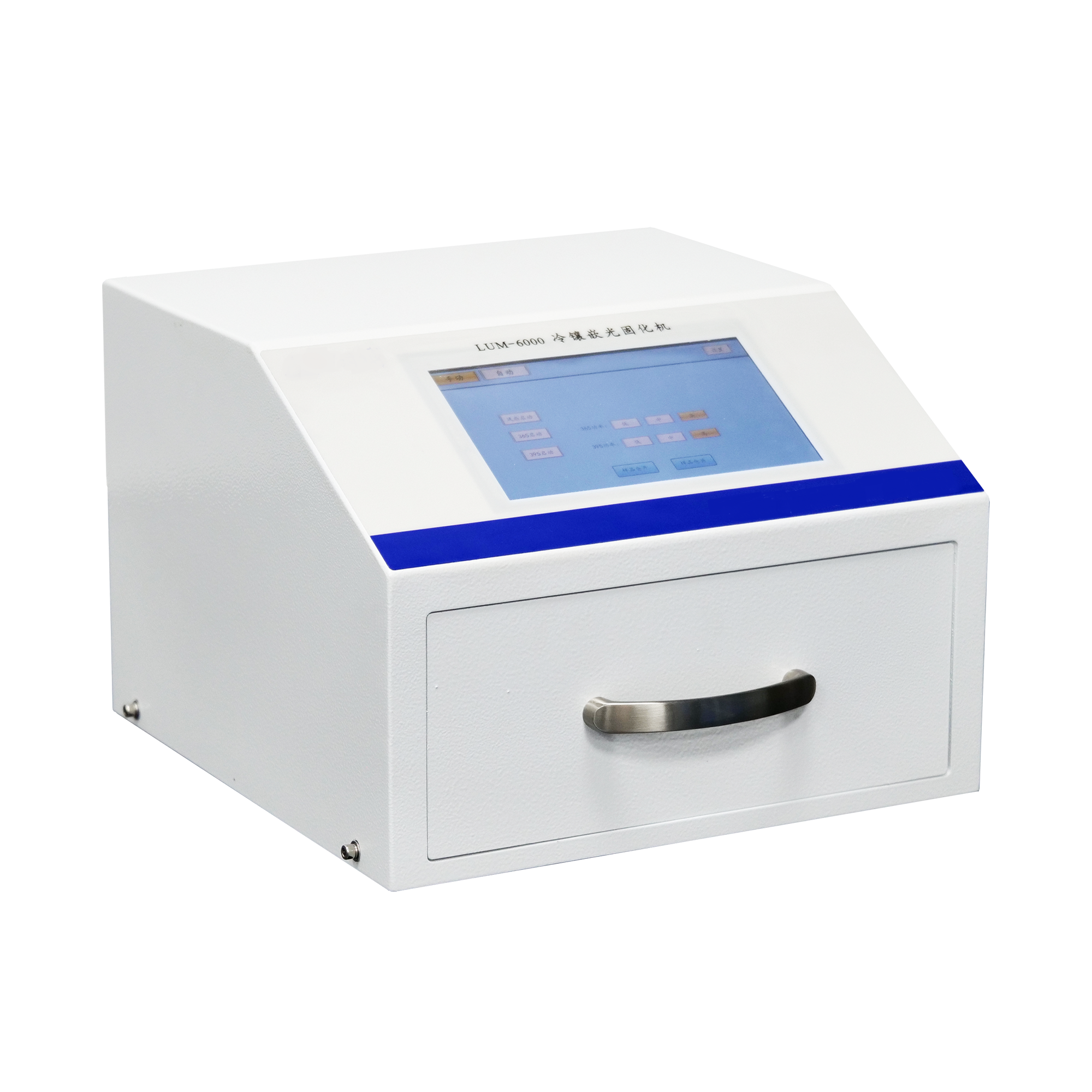

A Light Curing Cold Mounting Press is a specialized mounting device used in metallography and material sample preparation. It differs from traditional hot mounting or resin cold mounting because it uses UV (ultraviolet) or visible light-curing resin to encapsulate specimens.
Key Features
– Dual-Wavelength LED: 365+395nm (optional: 395+450nm, 365+450nm)
– 16 Samples curing in minutes
– Uniform Illumination: 6-sided reflection system ensures efficient curing
– Low Heat Process: <50°C — no thermal damage to samples
– Intelligent Control: Manual / 99 Auto Programs, Adjustable brightness per wavelength, Auto door control
– Durable LED: Over 100× longer life than traditional mercury lamps
– Energy Efficient: 90% less power than UV systems
– Optional Vacuum System: Reduces air bubbles

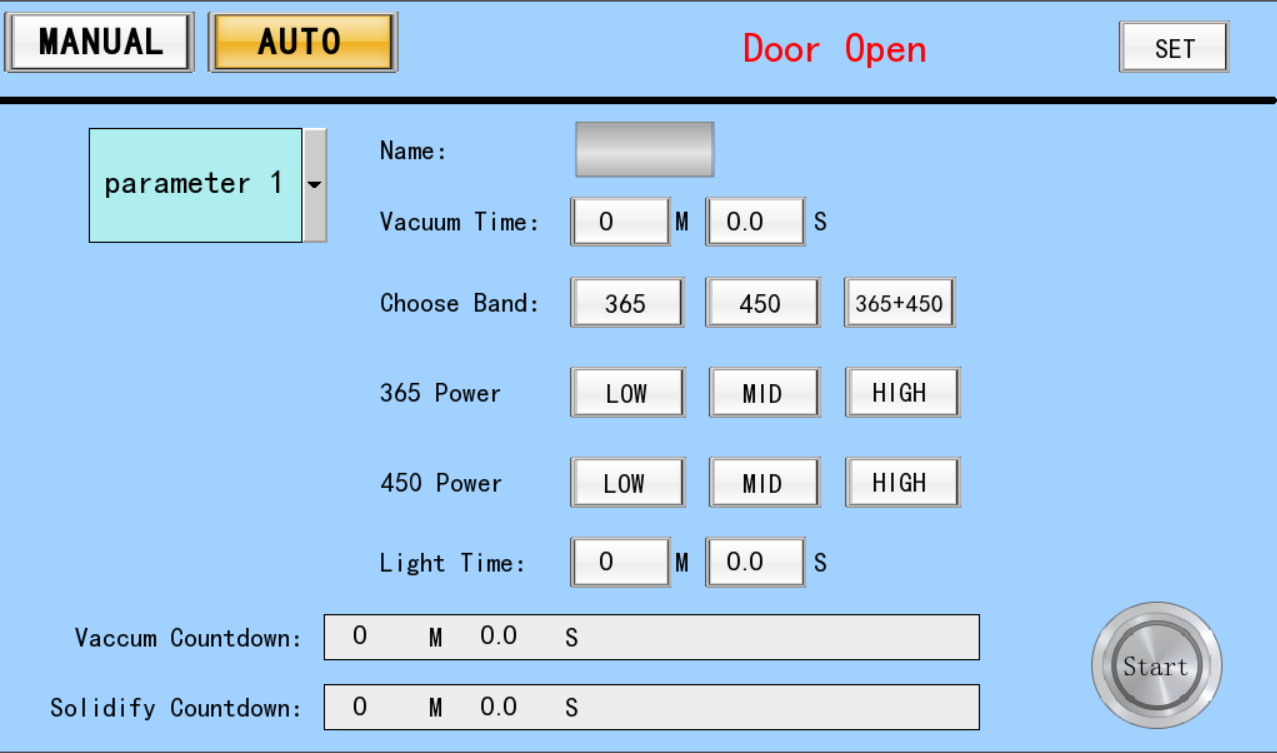

Auto Mode

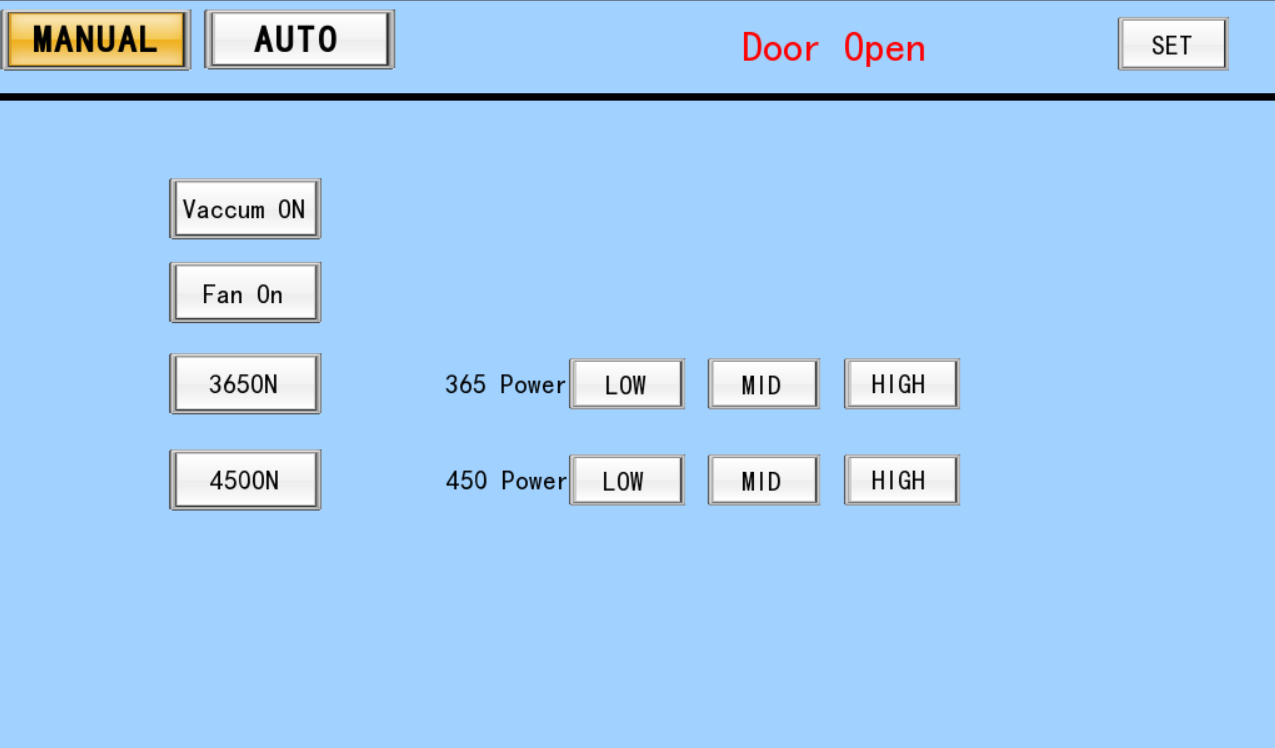

Manual Mode
