Product Description
2 Types Available
Desktop Precision Cutting Machine comes with 2 different types according to user preference and suitability:
Desktop Metallographic Cutting Machine
– TP-B255FS
Desktop Metallographic Precision Cutting Machine
– TP-D150A

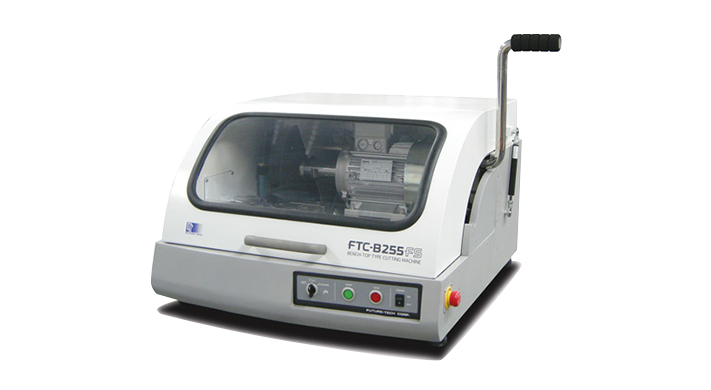

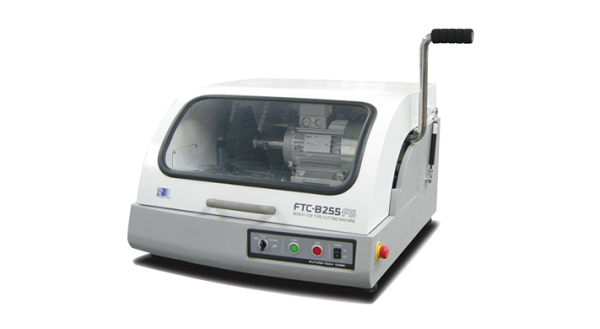

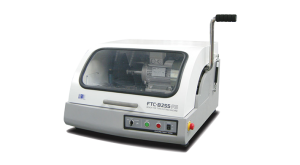

The TP-B255FS cutting machine is suitable for sampling small products and features vertical feeding for efficient multiple sample processing. A side door allows cutting of long-shaped samples. Its fixed T-shaped trough accommodates various cutting clips, making it ideal for narrow workspaces. The compact design allows the main unit to be placed on a table, while the separate coolant tank can be stored underneath to save space.

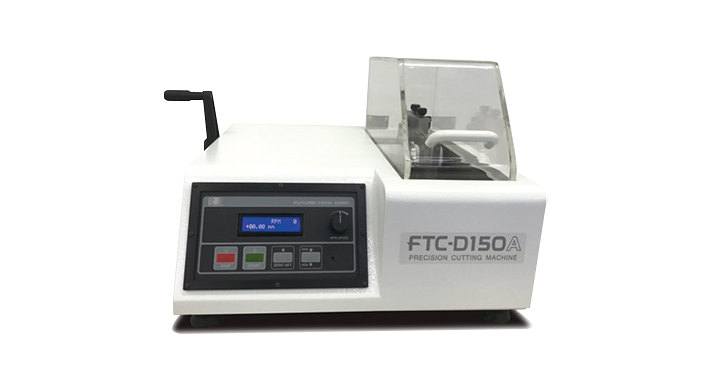

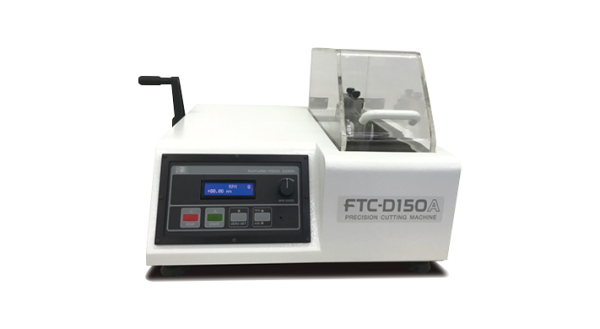

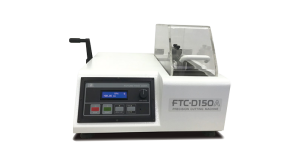

The TP-D150A cutting machine is ideal for small and fragile samples. It features fixed-size positioning in the X direction, ensuring high displacement accuracy. The cutting speed is adjustable and can be maintained at a constant rate for precise results. It is well-suited for applications such as metal hardness and heat treatment analysis, surface coating measurement, ceramic and electronic component observation, and training in quality control and material analysis.
| Item | Model | ||
| TN-B255FS | TN-D150A | ||
| Appearance Structure | Desktop type (aluminum cast chassis/lift-up steel cover/acrylic window) | ||
| Transmission System | Form | Induction motor | |
| Horsepower | 3 HP (60/50Hz)/2.2kW/ACP3 | 100W (60/50Hz) | |
| Spindle Speed (RPM) | 3240 (60Hz) 2850 (50Hz) |
0~3000RPM (50/60Hz) | |
| Cutting Sheet Specifications | Outer Diameter of Cutting Disc | Ø230mm/Ø255mm T: 1.2mm | Ø150mm flange size Ø55mm |
| Inner Aperture of Cutting Disc | Shaft diameter Ø31.75 | Shaft diameter Ø31.75(*Ø25.4) | |
| Cutting Disc | — | Diamond cutting disc 『/oxy』aluminum sand conveyor (optional) |
|
| Sample Clamping | Fixtures Type | Various vise and fixed fixture can be installed (need to be purchased outside) | Clip-on |
| Diameter of Sand Conveying Flange | Ø60mm | NA | |
| Maximum Cutting Diameter | Ø230mm cutting disc is Ø60mm Ø255mm cutting disc is Ø70mm |
NA | |
| Long Side Window | The side window can open and cut long materials | NA | |
| Locking Method | NA | Tool afterburner | |
| Left and Right Displacement | NA | The maximum 15mm left and right from the center position | |
| Maximum Height | NA | 30mm | |
| Control | Panel Form | Button control panel LCD display | |
| Features | Cutting spindle start and stop, cutting fluid start and stop | Operation starts, operation stops Zero displacement/RPM/ Speed control/unit switch |
|
| Feeding Device | Tool Setting Method | Visually | |
| Manual Advance and Retreat | Manual/Use the feed handle to press down and cut, and feed vertically | Handle indirect | |
| Working Desk Size | Fixed T-slot (4 grooves, each groove 10mm) W255x220mm, can fix the fixture | NA | |
| Lighting device | LED Lamps | NA | |
| Safety | Emergency Button | In an emergency, press the emergency stop button to stop all functions | The upper cover is not properly closed and cannot be started, and the upper cover is opened during operation and the operation stops |
| Door Safety Device | After closing the hatch correctly, the spindle function cannot be started. The main axis of the door is stopped during the operation. |
||
| Cooling Device | Water Tank Capacity | 25L | 3L |
| Weight/Size | 18kg/W650 x D340 x H565mm | 25kg/W320 x D9500 x H360 | |
| Circulation Pump | 1/4 HP | NA | |
| Circulating Water | 30L/min | NA | |
| Cooling Water Hose | 2 teams | NA | |
| Filter Method | Separate cooling device/filter and sedimentation tank | NA | |
| Magnetic Filter | Optional | NA | |
| Power Supply | AC 220V ~240V 50HZ (380V 60Hz3P optional) Power: 2300W | AC 220V /380V 50HZ/60HZ 3P | |
| Dimension | Size | W800 x D900 x H1300 | W800 x D900 x H1300 |
| Weight | 120kg | 21kg | |
| Standard Accessories | Ø255mm cutting blade* x 2, cutting fluid 1L, a set of wrenches | Cutting fluid x 1, a set of standard sample holders, tool box (including tools)*1set | |
