Description

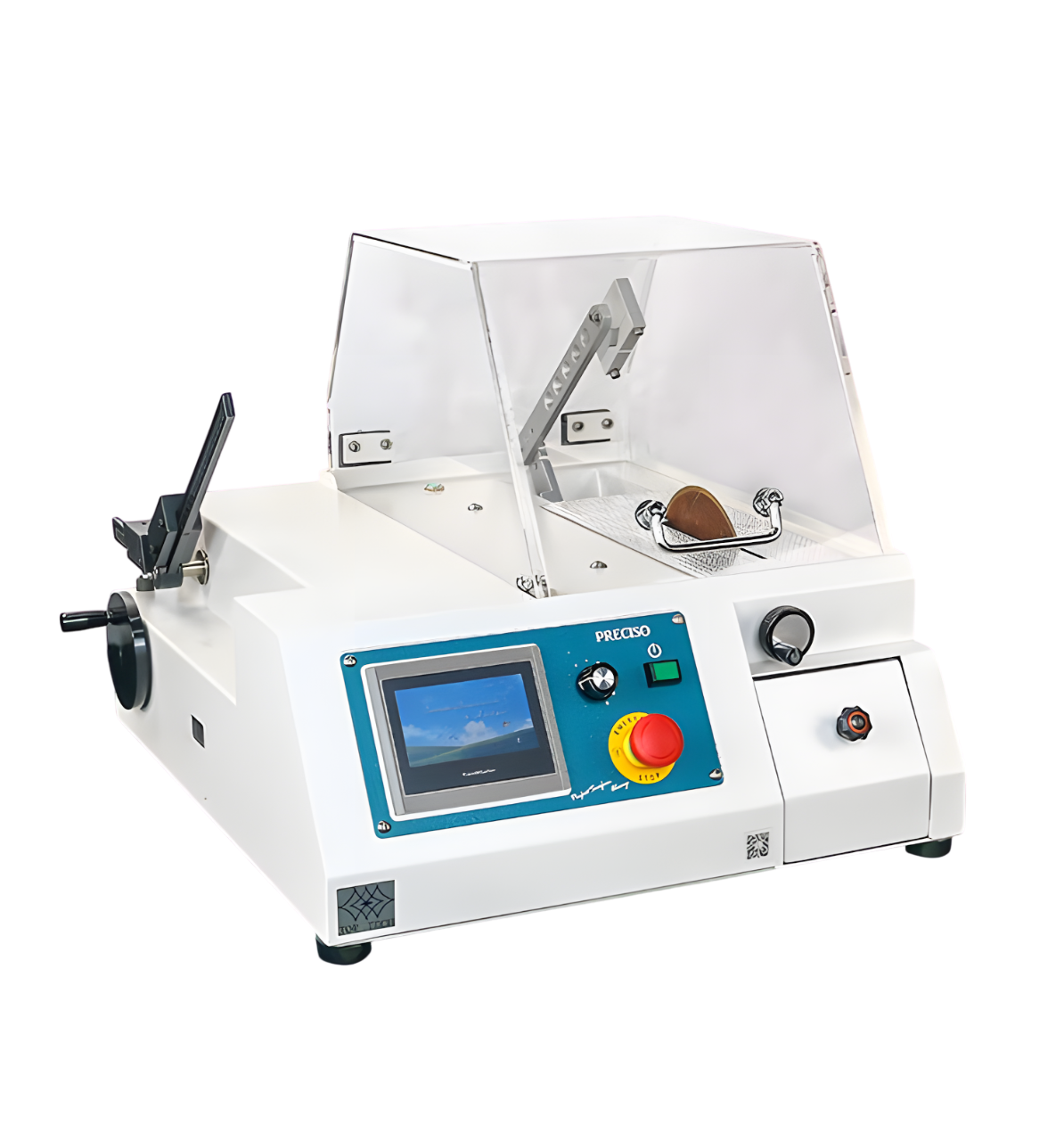

The CL50 is a compact precision diamond saw ideal for metallographic sample preparation. With a durable diamond blade, it delivers fast, accurate cuts on materials up to Ø50mm, including metals, ceramics, plastics, PCBs, and glass. Its gravity-fed cutting design reduces surface deformation, making it perfect for labs, electronics, and manufacturing applications.
Application range: research & education institution, electronic industry, and manufacturing industry
Suitable for ceramic, plastic, steel, cooper, iron, PCB boards, glass and carbon fiber composite
| Model | CL50 |
| Motor power | 400W |
| Noise level | 62~68dB |
| Sample Dim. Max.(mm) | Ø50mm |
| Cutting Platform WxD | 274 x 550mm (Use with Ø7”cut-off wheel) |
| Diamond blade | Ø5″~ Ø7″ (Ø125mm~Ø175mm) |
| Loading pressure | Counterweight 0~700g |
| Cutting Method |
Rock arm feeding system Automatic stop cutting protection device |
| Rotational speed | 150~2000 RPM (Rotational speed can be customized) |
| Cutting Vise (standard) | Long type kit |
| Horizontal movement | 40mm |
| Coolant tank capacity | 1 L (Recirculating in coolant tank) |
| Machine size (W x L x H) | 570 x 620 x 450mm |
| Machine weight Kg | 43 kg |
| Power | AC110V/200V 1Ø |
| Standard accessories | coolant 1 L standard clamp*1(Ø50) |
| Options | Various vise, cutting table, cut-off wheel |
* We reserve the right of changing design without notice.
