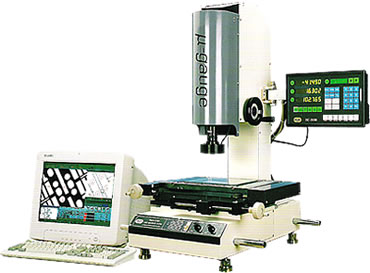

TMS-1510

SPECIFICATION
Model 1510
Travel - X, Y, axis 150 mm x 100 mm
Stage Size 354 mm x 228 mm
Video System : high resolution video camera, 15" CRT Monitor.
Magnification : 0.7X ~ 4.5X ( 28X ~ 180X ).
Illumination : adjustable illumination for surface and contour.
Power Supply : AC110V or 220 V, single phase 50/60Hz.
Linear Scale : X, Y, axis, resolution 0.001mm.
Digital Readout : DC-3000 DRO with RS232 output
Accuracy : (3 + L/ 25) m.
Repeatability : 0.003mm.
Base : Fc30 casting steel.
Sighting : cross-hair.

Application: suitable for electronic, molding, press, spring, screw tool, plastic, rubber, valve, camera, bicycle, motor parts, PCB, conduction rubber, interference board, lead frame and other precision industries.

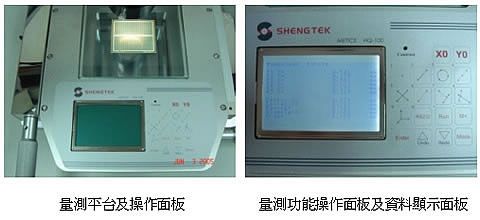

TOPPER SH-100 2D工具顯微量測系統

系統特點

採用高品質olympus的光學顯微系統 , 搭配輔助工具量測用精密測台
系統輕巧功能齊全
生產線量測的好幫手
中小企業的最愛踏板點選自動計算量測結果
淺顯易懂的按鍵功能
RS232 Data 輸出, 巨集輸入功能
大畫面的資料顯示螢幕
6.8"~7.0" TFT LCD螢幕
完整的幾何量測功能
公英制單位切換及十字線屬性設定
提供外部巨集編輯功能
巨集可儲存於系統中
